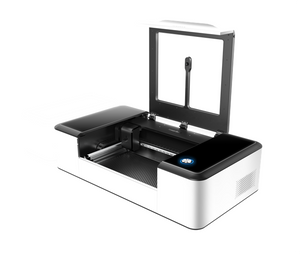

Specially designed with education and creation in mind, the Laserbox reimagines and redefines laser performance. The Laserbox utilizes a high-resolution ultra-wide-angle camera together with an AI visual algorithm to bring your creations from idea into reality.

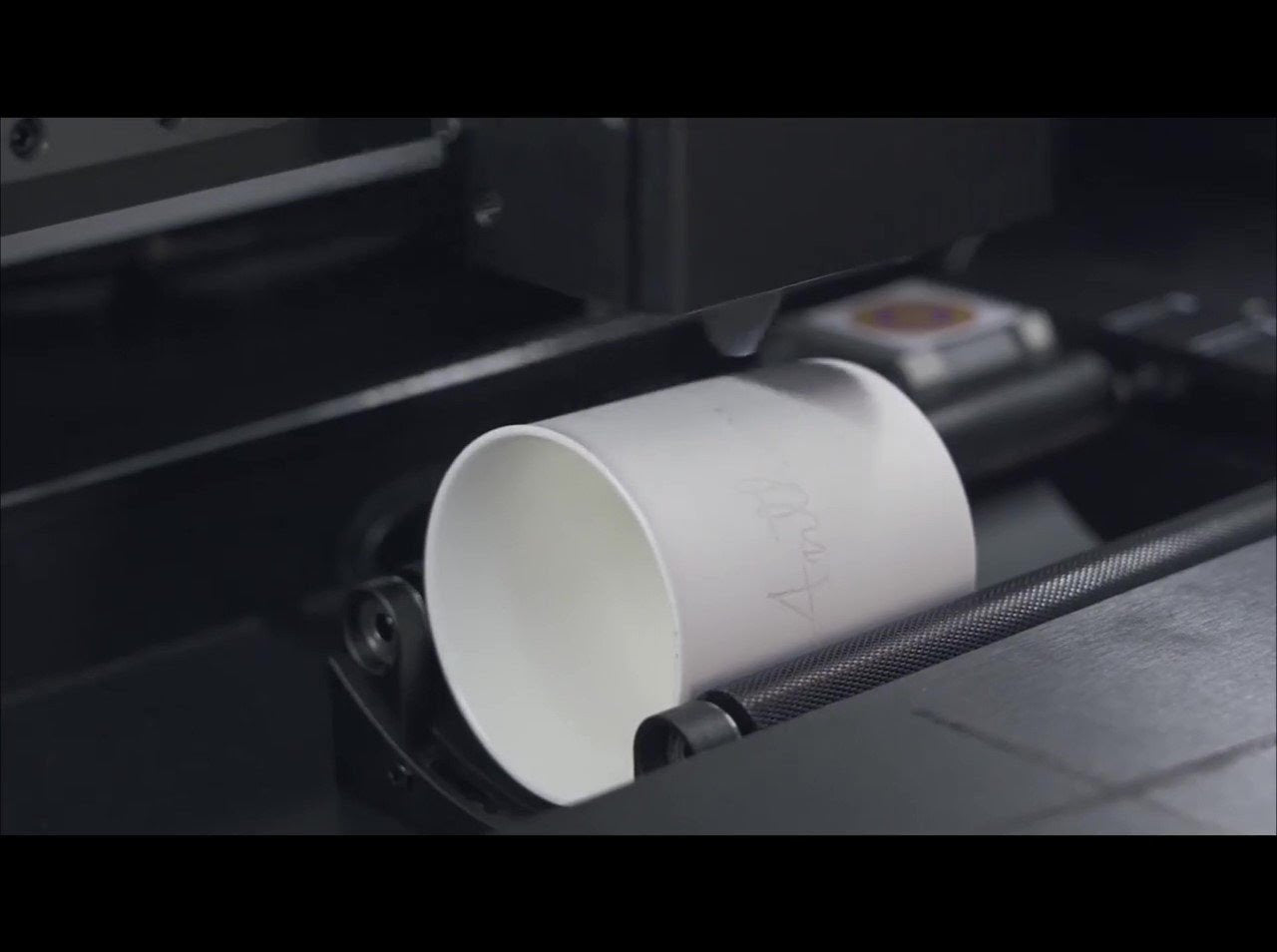

Rotary Engraving
The rotary accessory attachment unlocks 360° engraving for cylinders from 3mm to 70mm in diameter. Customize a wide range of cylindrical materials with the rotary accessory attachment.
Design with a Pen
Directly draw your desired design on paper or directly on Laserbox materials, and get identically beautiful prints. xTool Laserbox recognizes a thick 3mm red color line for cutting and black for engraving automatically.

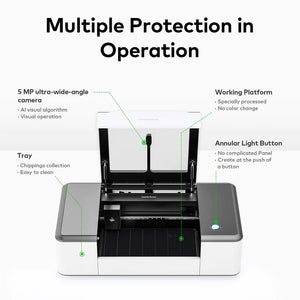

Job Pauses When Open The Lid
Laserbox stops working at the same time you open the lid, completely safe to use even for children.
Early-warning System
Monitored in real time by collective high-performance sensors, Laserbox has multiple safety notifications, that immediately alert you to issues like overheating and water cooling.

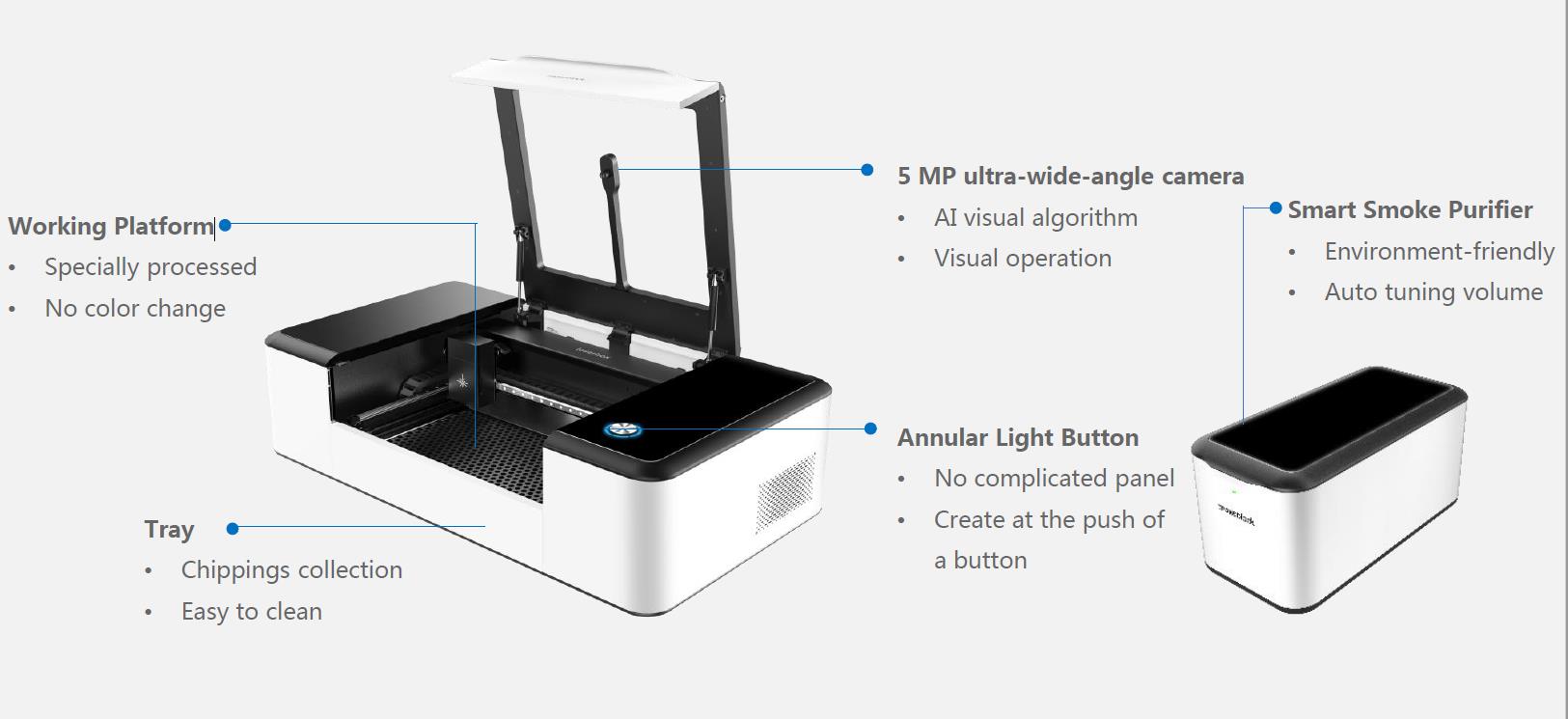

Smart Smoke Purifier
The smart smoke purifier automatically opens, and adjusts the volume according to the working status of Laserbox, which ensures eco-friendly ventilation. The filter for smoke purifier could be easily replaced.

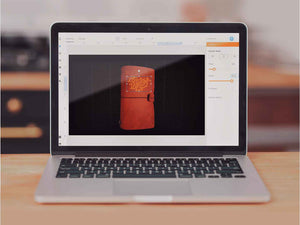

Live Camera Preview
Preview your design and visually position it on the material. The embedded 5MP ultra-wide-angle camera displays a visible working area in real time, ensuring accurate laser cutting or engraving.
Makeblock Laserbox Rotary Set Inclusions:
- 1x Laserbox
- 1x Rotary Attachment
- Laser Materials
- 56x Pieces of 3mm Basswood
- 45x Pieces of 3.5mm Cardboard
- 1x Smoke Purifier
- 1x Aviation Connector Cable
- 2x Smoke Exhaust Pipes with Clamps
- 1x USB Cable
- User Manual
Specifications:
| LASER SYSTEM | |
|---|---|
| Laser Power | 40W |
| Laser Source | CO₂ Glass Laser Tube |
| Lifespan | 6000~8000h |
| Safety Guard | Class I (FDA Certified) |
| MATERIALS PROCESSING | |
|---|---|
| Max. Cutting Depth | 0.59” Basswood |
| Max. Carving Speed | 350mm/s |
| Carving Precision | 0.05mm |
| Noise Rating | ≤70dB |
| ROTARY DEVICE | |
|---|---|
| Rotary engraving diameter | 3-70mm(0.12”-2.76”) |
| Rotatable engraving pattern types | Image / Line / Text |
| WORK AREA | |
|---|---|
| Work Table Area | 19.69” x 11.81” |
| Max. Workpiece Height(with honeycomb tray) | 0.87” |
| Max. Workpiece Height(without honeycomb tray) | 3.54” |
| Work Table Surface | Black (Special surface finishing technique helps reduce burn marks or discoloration) |
| AI CAMERA INFORMATION | |
|---|---|
| Focus Mode | AI Visual AF/Material Recognition AF/Material Set-up AF |
| Camera | High-resolution Ultra-wide Camera |
| Number of Pixels (Effective) | 5MP |
| Visible Area | 19.29” x 11.42” |
| Image Resolution | 1000DPI |
| Positioning | AI Visual Positioning (Error range ≤ 5mm) |
| WORKING MODE | |
|---|---|
| Cooling | Closed-loop self-contained internal liquid cooling system |
| Air Assist | Internal air assist with no external compressor hookup required |
| Connection / Transmission | Wi-Fi, USB, Ethernet |
| APPEARANCE OVERVIEW | |
|---|---|
| Operation Panel | Push Button + Circular LED Indicator Light |
| Frame Materials | V0 Flame Retardant ABS / PC |
| Connecting Interfaces | USB cable/Ethernet cable/Power cable/Aviation Connector |
| Outlet Diameter | 63.5mm |
| SOFTWARE REQUIREMENTS | |
|---|---|
| Operating Systems | Windows/macOS |
| Control Software | Laserbox |
| Design Software | AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc. |
| Supported File Type | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| SOFTWARE SYSTEM REQUIREMENTS | |
|---|---|
| Operating Systems | 64-bit Windows 7 or later/macOS Mojave10.13 or later |
| Processor | Core i3 or AMD A6 2.4Ghz |
| Memory Space | 4GB RAM |
| Storage Space | 5GB |
| ENVIRONMENTAL REQUIREMENTS | |
|---|---|
| Power | 220/110VAC, 50/60Hz |
| Work Consumption (without fan) | 350W |
| Nonoperating Temperature | 0~45°C |
| Relative Humidity | 5~90°C |
| Operating Ambient Temperature | 0~35°C |
| SIZE AND WEIGHT | |
|---|---|
| Product Weight | 48kg |
| Product Size (L x W x H) | 37.72” x 20.79” x 10.55” |
| SUPPORTED ACCESSORIES | |
|---|---|
| Smart Smoke Purifier | √ |
| Exhaust Fan | √ |
| Rotary Attachment | √ |
