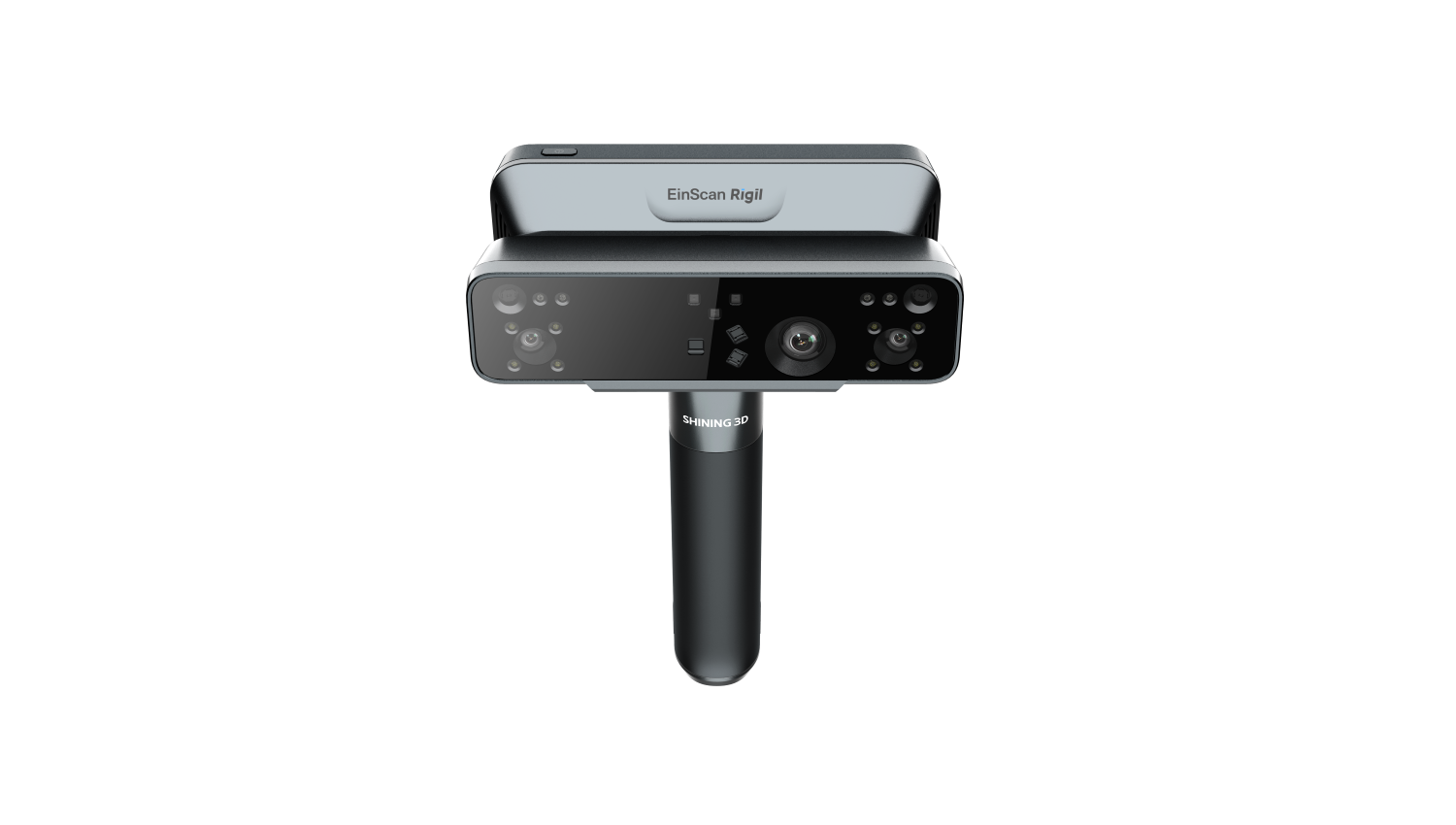

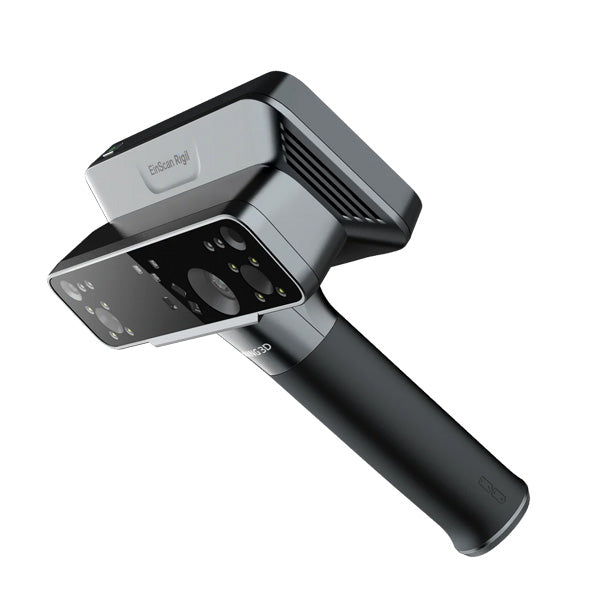

Einscan Rigil Wireless 3D Scanner

EinScan Rigil is the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. EinScan Rigil offers a fully integrated 3D scanning wireless workflow with three working modes that effectively eliminates the traditional compromise between computing power and flexibility.

It provides high quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05 mm. Its hybrid types of light sources — 19 crossed laser lines, 7 parallel blue laser lines, and infrared VCSEL — which paired with two separate groups of tailored cameras to ensure versatile performance and peak efficiency for objects of wide-range of sizes and surface types.

Three Working Modes

Unlock MAX Performance And Flexibility

The EinScan Rigil offers three operating modes:

Standalone Mode

All scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.

Wireless PC Mode

Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.

Traditional PC Mode

Maintaining availability and maximum stability in complex network environments or under restricted network conditions.

Marker-Free Laser Scanning

EinScan Rigil has special feature tracking algorithm, provides a marker-free blue laser scanning mode, enabling better efficient than traditional marker based laser scan and better data quality than marker-free IR scan.

Working Efficiently in Sunlight Outdoors

Both Blue Laser and Infrared VCSEL projectors have strong environment light adaptability, which ensure smooth scanning experience under strong sunlight.

5MP Full Color Laser Scanning

EinScan Rigil is equipped with a 5MP high-definition camera that can restore high-quality texture details in both Blue Laser and IR rapid modes, allowing designers, engineers and artists to maintain a high fidelity of model during the digitization process, providing more precise information for subsequent analysis and creation.

EXScan Rigil

EXScan Rigil is a dedicated PC software designed specifically for the EinScan Rigil scanner, covering the full spectrum of advanced professional scanning workflows—from calibration, scanning, data modification, closed surface generation, model editing, to export and sharing.
When paired with the EinScan Rigil scanner, it delivers a seamless, flexible, and portable scanning experience that combines stability and high-quality results.

Specifications

• Scan Modes: Laser HD; IR Rapid
• Light Source: 19+19 crossed blue laser lines; 7 parallel blue laser lines; IR VCSEL
• Resolution: Laser: 0.05–10 mm; IR: 0.2–10 mm
• Scanning Speed: Laser: 4,400,000 points/s (HD) | 940,000 points/s; IR: 1,600,000 points/s
• Working Distance: Laser: 170–550 mm; IR: 160–1500 mm
• Alignment Modes: Laser: Global Markers / Markers / Features / Hybrid; IR: Global Markers / Markers / Features / Texture / Hybrid
• Multiple Types of Marker Supported: 3 / 6 / 12 mm
• Volumetric Accuracy: Laser: up to 0.04 + 0.06 mm/m; IR: up to 0.1 + 0.4 mm/m
• Camera Resolution: 3D: 2.3 MP ×2 and 1.3 MP ×2; Texture: 5 MP
• Output Formats: STL, OBJ, PLY, 3MF, ASC
• Laser Class: Class II
• Operating Modes: Standalone (wireless, built-in compute), PC-Wireless, PC-Wired
• Hardware (scanner): 32 GB DDR5 RAM; 6.4? 2K AMOLED touch screen
• I/O: USB Type-C
• Battery: 6000 mAh ×2 (replaceable); supports 60 W PD 3.0 charging
• Dimensions (H×D×W): 233 × 180 × 72.8 mm
• Weight: 870 g (batteries included)
• Operating Temperature: -10 °C to 40 °C
• Certifications: CE, FCC, RoHS, WEEE, FDA, SRRC, IP50
• PC Requirements (for PC modes): Windows 11 Pro 22H2 (64-bit); NVIDIA GeForce RTX 3060 (Laptop) or above; 8 GB+ VRAM; 64 GB+ RAM (DDR5 dual-channel); USB 3.0; 13th-Gen Intel Core i7-13700H or above
