Beambox II Laser Cutter Value Bundle

The Beambox II Laser Cutter Value Bundle is the perfect solution to get you started.

Start your laser cutting journey with this value bundle, designed to empower you in engraving and cutting tasks with ease. Laser cutters are able to efficiently cut intricate designs through a broad range of materials, to create personalised projects. Serving as wonderful educational tools as well, they are able to inspire passion for technology.

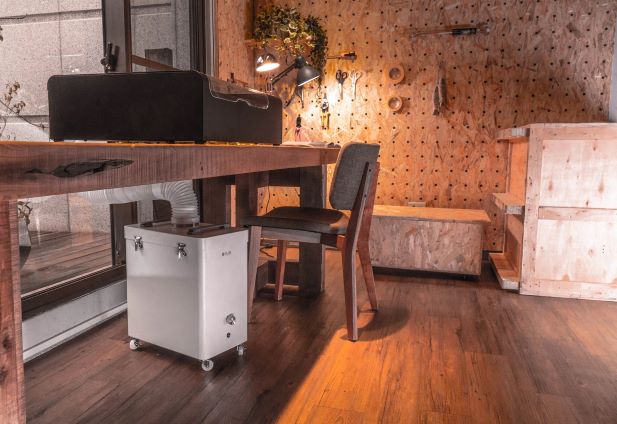

Complimenting the Beambox II is the Rotary Add on used for cutting/engraving cylinder shaped objects, Pass Through Add On, Auto Feeder Add-On, and the Auto Feeder Extension. There is also the Beam Air which is a filtration system for the exhaust fumes. Not sure where to start? Use The Art of Digital Fabrication book to get up to speed on Laser Cutting.

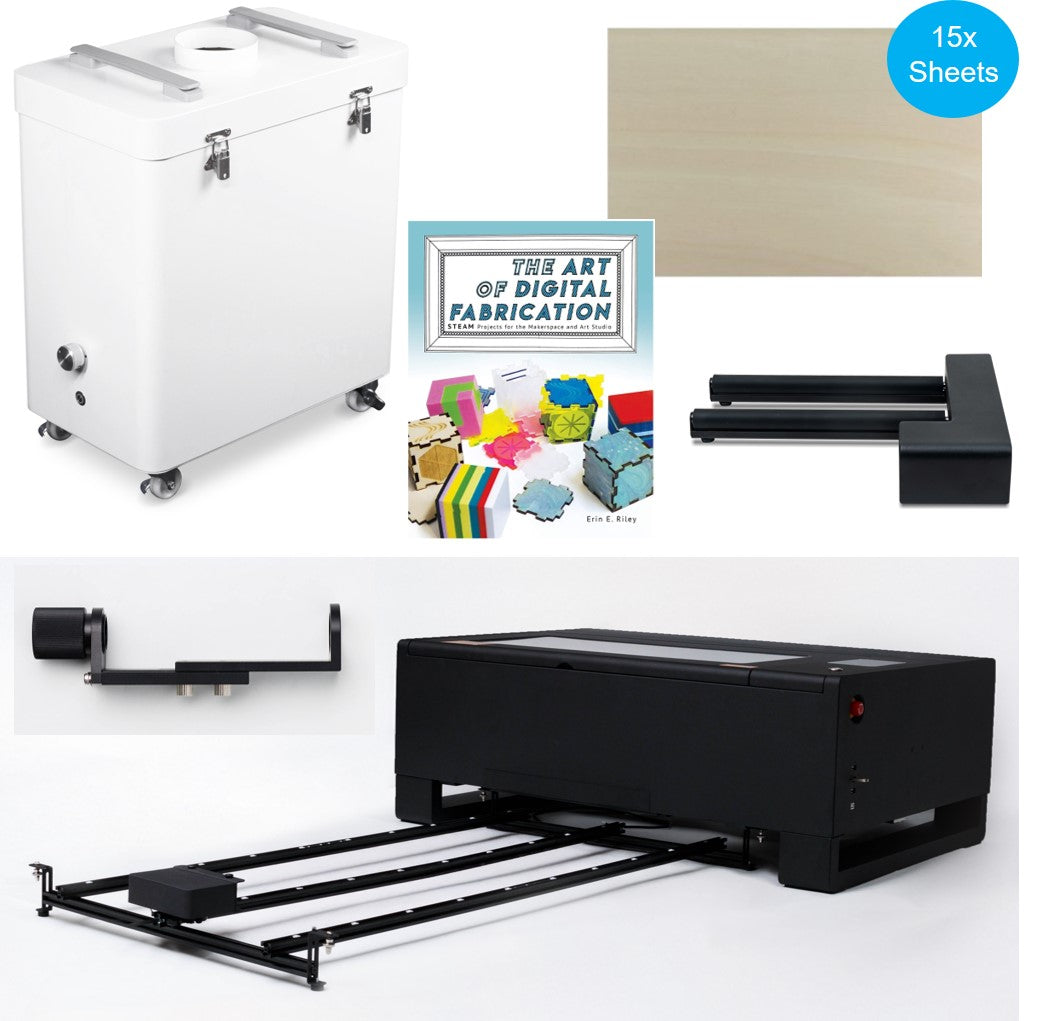

The laser cutter value bundle includes;

• 1x Beambox II Laser Cutter & Engraver
• 1x Rotary Add on
• 1x Pass Through Add-On
• 1x Auto Feeder Add-On
• 1x Auto Feeder Extension

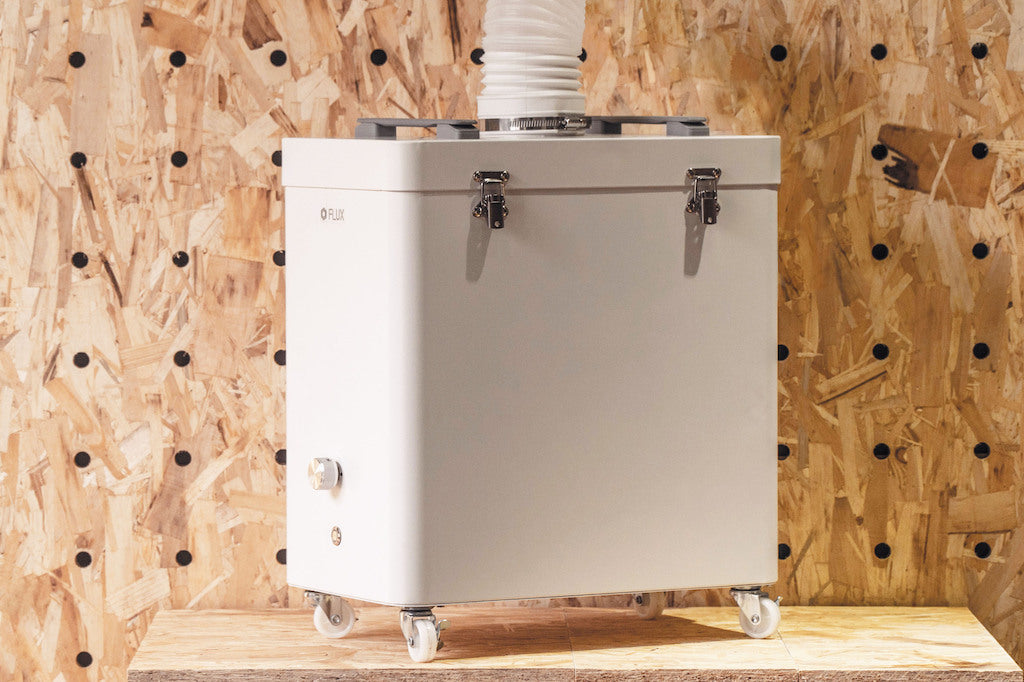

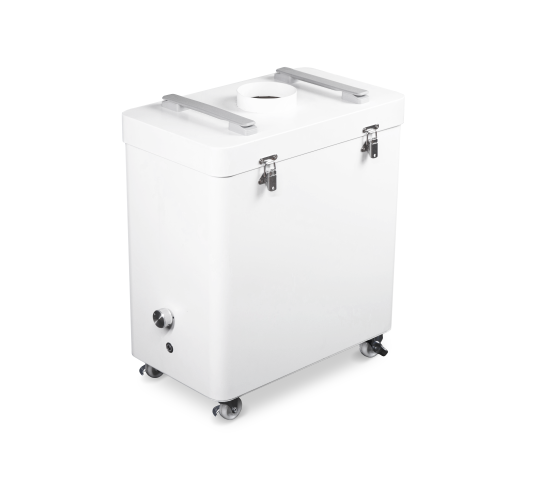

• 1x Beam Air by Flux
• 3x 5packs of Plywood (3mm)
• 1x The Art of Digital Fabrication

Introducing the all-new Beambox II—more powerful, faster, and built for bigger ideas. With an enhanced camera preview, auto-focus, and red light projection, every cut and engraving is as precise as you imagine. Flat surfaces, curved objects, long materials—whatever you create, Beambox II adapts effortlessly. Designed for limitless creativity, it transforms your designs into reality. Whether you're a DIY professional or a designer, the possibilities are endless.

Product Features

• 55W Catalyzed Premium CO2 Laser
• Certified by CE, FCC, FDA & SGS / Compliance - IEC 60825-1 / FDA Class 1 Laser Safety Compliance
• Max speed 900mm/s
• 1000 DPI high resolution
• Large working Area 23.62" x 14.76" (600 x 375 mm)
• Cut up to 20mm (0.79") acrylic and 18mm (0.71") cypress
• Built-in HD Camera & auto focus
• High-speed camera preview & red light preview
• Compatible with Beam Studio & LightBurn
• Compatible with JPG / PNG / SVG / DXF

Keeping It Simple. Three Steps to Fulfilment.

1. Place Your Material
2. Tap to Auto Focus
3. Import Your Design & Start
Project Complete!



The 55W Laser Upgrade. A Game-Changer.

Beambox II is now upgraded to 55W CO2 Laser, delivering exceptional cutting performance. Now, you can effortlessly cut through 20mm acrylic and 18mm Japanese cypress, whether it's intricate designs or bold creations—precision is guaranteed. Elevate your creative freedom and bring every idea to life without limits.

900mm/s Ultra-Fast Engraving. Triple the Efficiency.

With engraving speeds of up to 900mm/s, accelerating your creations to new heights. This revolutionary upgrade boosts efficiency by three times, making it easier than ever to bring more complex designs to life. Whether it's intricate patterns or large-scale projects, Beambox II quickly and accurately transforms your ideas into reality, pushing the boundaries of creativity.

Larger Working Area, Expanded Creative Space.

Beambox II features an expanded working area of 23.62" x 14.76", with a depth of 4.92", which can be extended to 8.46" with an optional bottom tray. Effortlessly handle larger materials or process multiple items in one go.

Deeper Work Depth. Endless Possibilities.

Upgraded from 3.15" to 4.92", offering greater flexibility and enhanced material handling capabilities. Remove the honeycomb tray to engrave even thicker materials, unlocking new creative possibilities.

Effortless Curve Engraving

The curve engraving feature is designed specifically for curved objects. By using red light for height measurement, the Z-axis dynamically adjusts throughout the engraving process to ensure precise results. Flawless precision on every curve, every detail—unlocking creative possibilities beyond the limits of flat surfaces.

Comparison Chart

Beambox II Specifications

Product Specifications

Laser Spec	55W CO2
Size	39.57" x 27.24" x 13.15" (1005 x 692 x 334 mm)
Weight	107 lbs (48.5 kg)
Max Engraving Speed	35.43 inches/s (900mm/s)
Max Acceleration	317 inches/s² (8000mm/s²)
Resolution	1000 DPI
Display	5” HD LCD Touchscreen
Focus Mode	Auto Focus
Laser Alignment	Camera Preview / Red Light Preview
Camera	8 MP CMOS
Connectivity	WiFi / USB / Ethernet (by USB Dongle)
Operating System	Windows / macOS / Linux / ChromeOS / Web (iOS, iPadOS, Android)
Software	Beam Studio / LightBurn



Work Area

Bed Size	24.80" x 17.13" (630 x 435 mm)
Work Area	23.62" x 14.76" (600 x 375 mm)
Work Area Depth	Without honeycomb: 4.92" (125 mm) With honeycomb: 2.36" (60 mm) With Extension Pocket Add-on: 8.46" (215 mm)
Extension Pocket Area	15.16" x 8.27" (385 x 210 mm)



Passthrough

Depth	0.55" (14 mm)
Width	13.78" (350 mm)



Roller Rotary

Engraving Diameter	0.31" to 7.09" (8 - 180 mm)
Engraving Length	22.44" (570 mm)



Chuck Rotary

Cylinder Diameter	0.04" to 5.71" (1 - 145 mm)
Ring Diameter	0.43" to 5.71" (11 - 145 mm)
Sphere Diameter	0.98" to 5.12" (25 - 130 mm)
Engraving Length	19.69" (500 mm)
