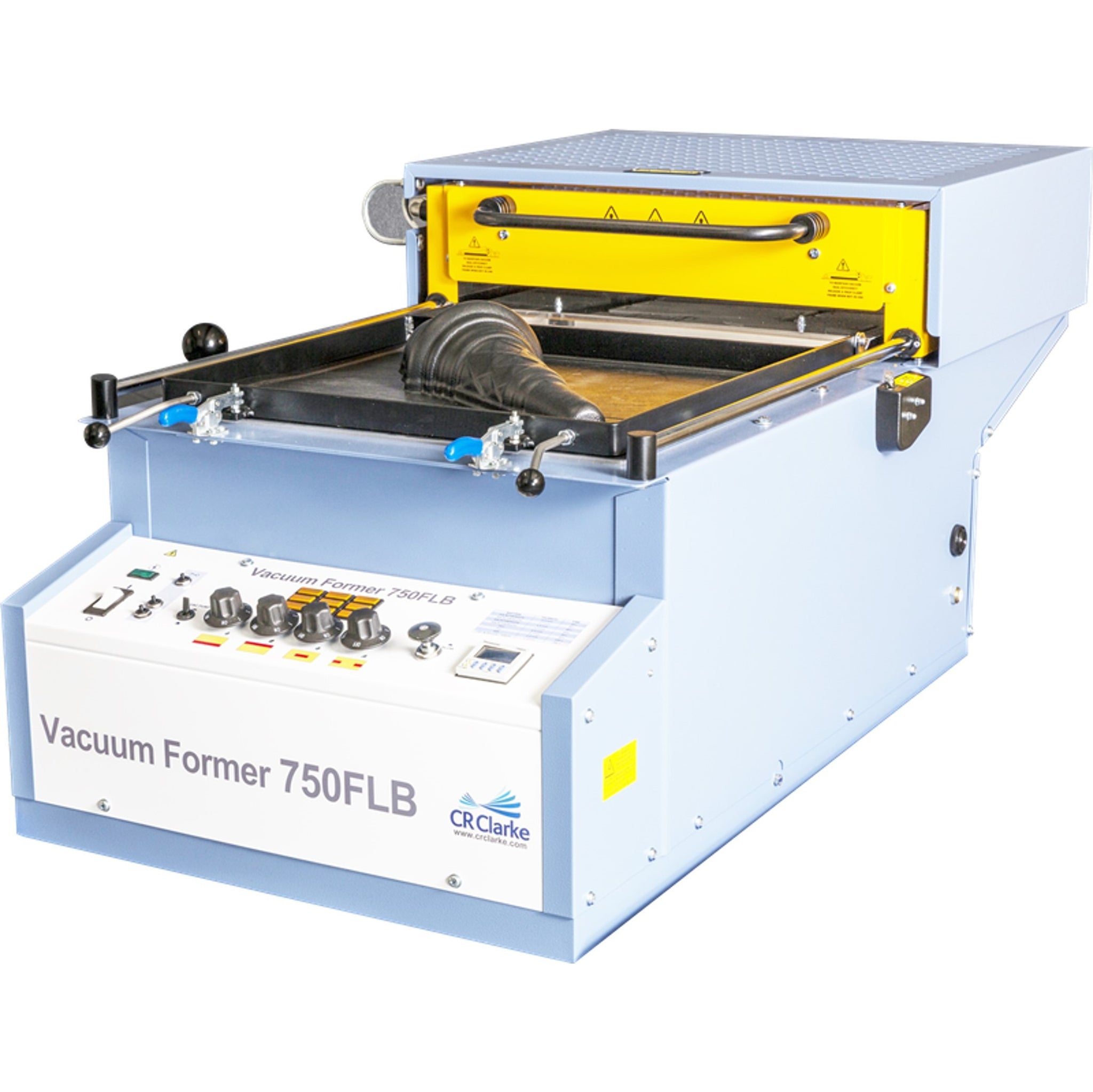

The CR Clarke Vacuum Former 750FLB has a sheet size of 508 x 458mm, with a maximum mould height of 150mm. It comes with a four-zone ceramic heater system, high flow vacuum pump and digital timer with audible alarm. The 750FLB machine is supplied with a stand with lockable castors for ease of movement around the workshop.
All machines are fitted with a -0.83 bar vacuum pump, which also provides a blow release to assist in the removal of the forming. Ceramic heater systems are used for fast and even heating. Heater hoods and platens run on chrome plated slide bars with nylon bushes for smooth operation. Machines are fitted with a safety interlock to prevent damage to the heaters when using a tall mould. The one-piece moulded silicone top seal is heat resistant for long service, while the platen seal simply lifts out for ease of maintenance. The 750FLB will produce professional, quality and high definition vacuum formings on a small/medium scale as required by model makers, development engineers and students quickly, efficiently and consistently. The machine embodies design features, manufacturing techniques and proprietary component specifications unique to our equipment.
Specifications:
| Voltage |
230 50-60Hz |
|
Max Current |
11 Amps |
|
Sheet Size |
508 x 458mm |
|
Maximum Material Thickness |
6mm |
|
Maximum Mould Height |
152mm |
|
Dimensions (Packed) |
800 x 1400 x 900mm |
| Weight | 152kg |
Outline Drawing:
