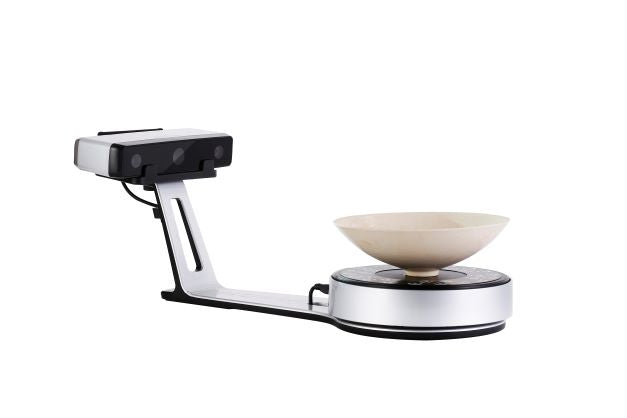

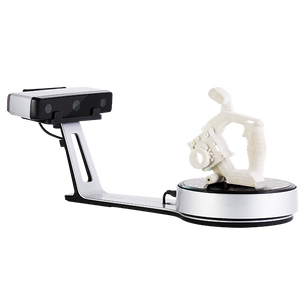

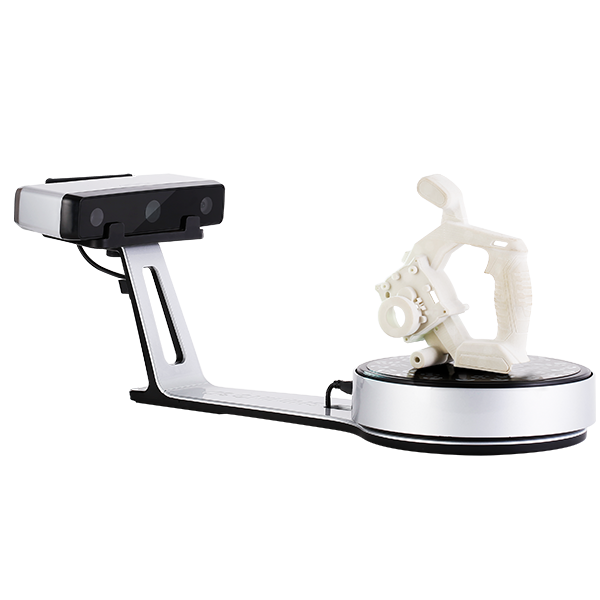

EinScan SP 3D Scanner
EinScan SP 3D Scanner
EinScan SP 3D Scanner
EinScan SP 3D Scanner
EinScan SP 3D Scanner

EinScan SP 3D Scanner

Regular price
$3,699.00 Ex GST
Sale price
$3,699.00 Ex GST
Shipping calculated at checkout.

Easier Operation, Faster Scanning, User Friendliness, and Enhanced Efficiency

Time is of the essence and capturing speed is vital.  The EinScan SP takes 4 seconds for single scans and for a 360-degree scan using the turntable, it will take only 1 minute on the EinScan SP.

The EinScan SP takes 4 seconds for single scans and for a 360-degree scan using the turntable, it will take only 1 minute on the EinScan SP.

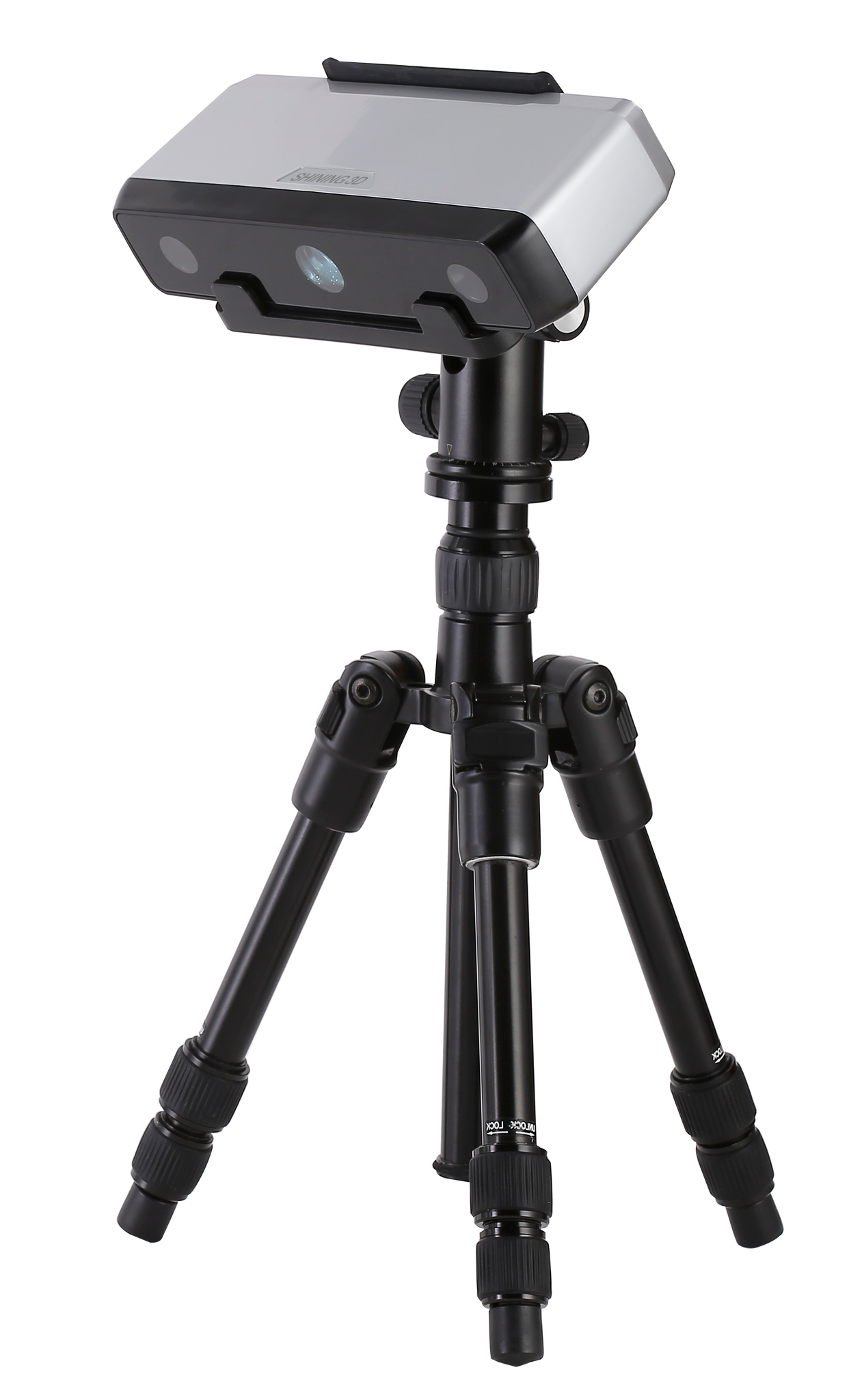

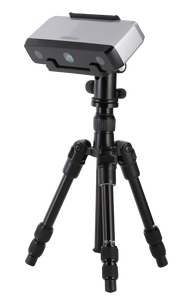

The EinScan SP features two scan modes for 3D scanning. Turntable mode allows you to capture objects under 200 x 200 x 200 mm with automatic rotational stitching. Free scan mode, allows you to mount the camera onto a tripod (tripod included with Platinum scanner) and 3D scan larger objects up to 700 x 700 x 700 mm.

The reason why the EinScan SP is the choice for engineers and digital artists is it’s ability to achieve higher accuracy higher precision for a single scan, capable of 0.05mm resolution! The secret is in the registration markers on both the turntable and available as stickers. The software will use these markers on the EinScan SP to perform an accurate auto alignment.

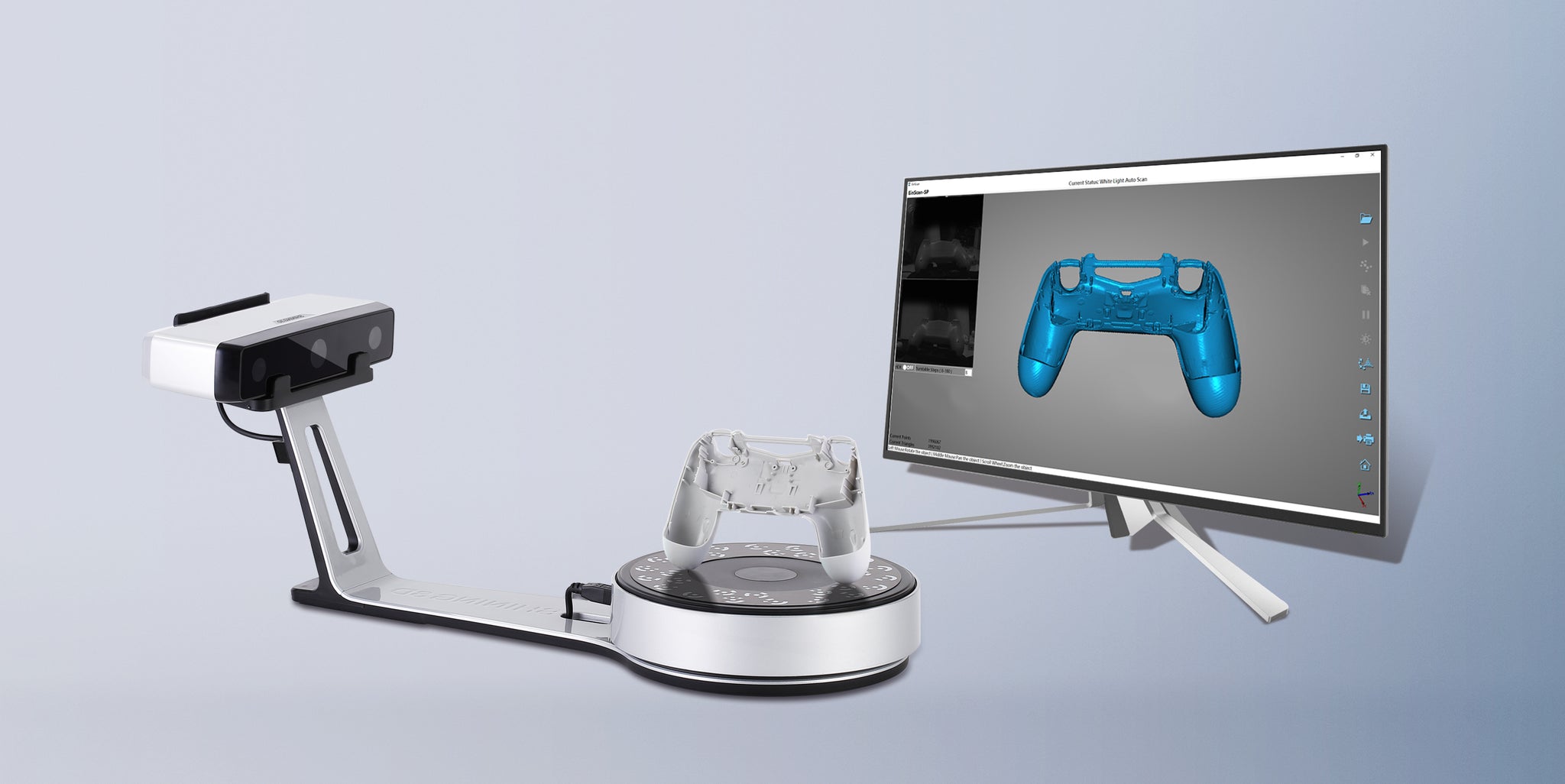

Intuitive software

The clever 3D Scan software that comes with your 3D Scanner does the heaving lifting and makes it easy to use. 3D Scanning in the past has been a very complex and time-consuming procedure, but with the included software makes it easy work to capture quality 3D models.

Specifications

Scan Mode Fixed Scan Auto Scan
Mode of Alignment Feature; Markers; Manual Turntable, Markers, Manual, Turntable Coded Target
Single Shot Accuracy ≤0.05 mm
Minimum Scan Volume 30 × 30 × 30 mm
Maximum Scan Volume 1200 ×1200×1200mm 200×200×200mm
Range of Single Capture 200×150 mm
Scan Speed <4 s
Point Distance 0.17 mm ~ 0.2 mm
Texture Yes
File Format OBJ, STL, ASC, PLY
Camera Resolution 1.3 Mega Pixels
Light Source White Light
Stand-off Distance 290 ~ 480 mm
Computer Requirements (Required) USB: 1 ×USB 2.0 or 3.0;OS: Win7, Win8, Win10 (64 bit);CPU: Dual-core i5;RAM: 8 G
Computer Requirements (Recommended) Graphics card: Nvidia series (GTX 660 or higher) Graphic memory > 2G;RAM: 16 G
Weight (unpacked) 4.2 kg
Weight (packed) 7.0 kg
Dimension 570×210×210 mm
Power Supply 40 w
Input Voltage DC:12 v, 3.33 A
Calibration Board HD
Turntable Turntable with markers
Load Capacity of Turntable 5 kg

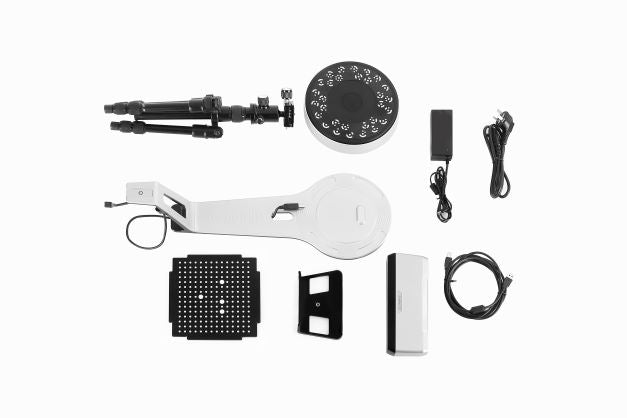

What's in the box

1 x Scanner head  1 x Turntable
1 x Scanner stand  1 x Scanner bracket
1 x Calibration Board  1 x Calibration Board Holder
 1 x Power Adapter  1 x Power cable
2 x USB Cable  1 x Tripod
 1 x Marker stickers
