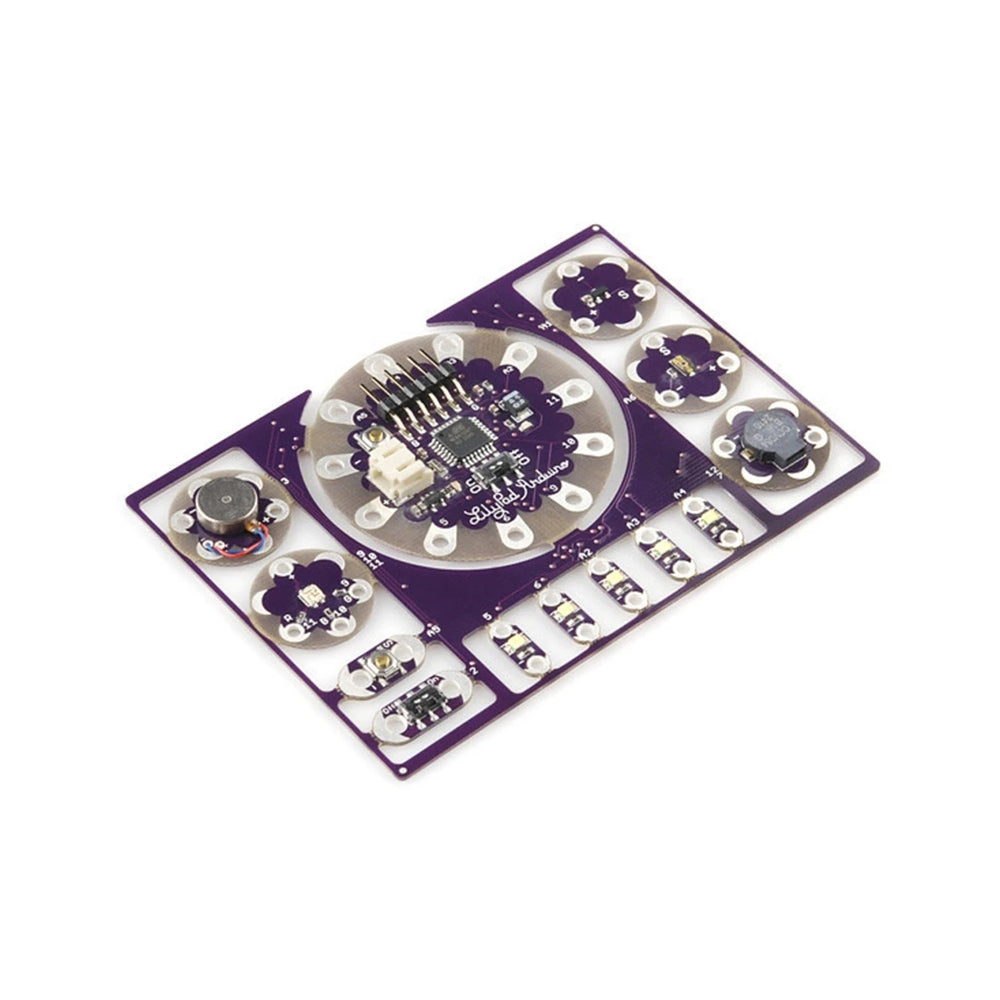

LilyPad ProtoSnap Development Board

LilyPad ProtoSnap Development Board

Regular price
$79.95 Inc GST
Sale price
$79.95 Inc GST
Tax included. Shipping calculated at checkout.

The ProtoSnap series is a new way to prototype your project without a breadboard. Everything is wired together on a single board, which makes it easy to explore the possibilities of the components before snapping them apart and building them into your project.

The ProtoSnap LilyPad Development Board is designed to get you started in the world of e-textiles. Combining a LilyPad Simple Board with other LilyPad components like a buzzer, a vibration motor, an RGB LED, a button, a switch, five LEDs, a light sensor, and a temperature sensor, the ProtoSnap LilyPad Development Board lets you dive right into wearable electronics. When you’ve learned how to program the LilyPad Arduino Simple Board, break apart the components and explore the power of the LilyPad platform.

We\'ve made some minor changes since the last revision that make it easier for *us* to build and easier for *you* to snap. We haven\'t changed anything about the way it works though, don\'t worry! This kit does not include a USB cable. You will need a USB mini-B for the FTDI basic, we offer it in [6ft red](https://www.sparkfun.com/products/11301), [6ft black](https://www.sparkfun.com/products/598), and [2in black](https://www.sparkfun.com/products/13243). Check below for an appropriate cable if you don\'t already have one.

**Note:** A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles and also to Arduino LLC to help fund continued development of new tools and new IDE features.

**Note:** Because of the added battery charging circuitry the Simple is unable to power a device from the FTDI header meaning that the Bluetooth Mate, for instance, is no longer plug\'n\'play compatible. Please use caution when using this battery in wearable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend using [coin cell batteries](https://www.sparkfun.com/search/results?term=coin+cell+battery) for beginners.

**Note:** Due to the requirements of shipping the battery in this kit, orders may take longer to process and therefore do not qualify for same-day shipping. Additionally, these batteries can not be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.

**Includes:**

**Included on the Board:**

* 1 x [LilyPad Simple Board](http://www.sparkfun.com/products/10274)
* 1 x [LilyPad Button](http://www.sparkfun.com/products/8776)
* 1 x [LilyPad Slide Switch](http://www.sparkfun.com/products/9350)
* 5 x [LilyPad White LED](http://www.sparkfun.com/products/10081)
* 1 x [LilyPad RGB tri-color LED](http://www.sparkfun.com/products/8467)
* 1 x [LilyPad Light Sensor](http://www.sparkfun.com/products/8464)
* 1 x [LilyPad Temp Sensor](http://www.sparkfun.com/products/8777)
* 1 x [LilyPad Buzzer](http://www.sparkfun.com/products/8463)
* 1 x [LilyPad Vibe board](https://www.sparkfun.com/products/11008)

**Kit Also Includes:**

* 1 x [LilyPad FTDI Basic](http://www.sparkfun.com/products/10275)
* 2 x [Conductive Thread Bobbin](https://www.sparkfun.com/products/10867)
* 1 x [Needle Set](https://www.sparkfun.com/products/10405)
* 1 x [110mAh LiPo Battery](https://www.sparkfun.com/products/731)

**Documents:**

* [Schematic](http://cdn.sparkfun.com/datasheets/E-Textiles/Lilypad/LilyPad-Dev-v34b.pdf)
* [Eagle Files](http://cdn.sparkfun.com/datasheets/E-Textiles/Lilypad/LilyPad-Dev-v34b.zip)
* [Getting Started Guide](https://learn.sparkfun.com/tutorials/lilypad-development-board-hookup-guide)
* [Activity Guide](https://learn.sparkfun.com/tutorials/lilypad-development-board-activity-guide)
* [Example Arduino Sketch](http://www.sparkfun.com/datasheets/DevTools/LilyPad/lilypad_dev_v11.pde)
* [GitHub](https://github.com/sparkfun/ProtoSnap-LilyPad_Development_Board)
