Lumens DC136 4K Portable Document Camera
Lumens DC136 4K Portable Document Camera
Lumens DC136 4K Portable Document Camera
Lumens DC136 4K Portable Document Camera
Lumens DC136 4K Portable Document Camera
Lumens DC136 4K Portable Document Camera

Lumens DC136 4K Portable Document Camera

Regular price
$659.00 Inc GST
Sale price
$659.00 Inc GST
Tax included. Shipping calculated at checkout.

4K Portable USB Document Camera

  • UltraHD resolution output
  • Portable, lightweight design with flexible gooseneck
  • High-speed capture up-to 30fps
  • Hands-free auto-focus and image optimization
  • USB plug and play design
  • Compatible with most whiteboards

Excellent Image Quality

With a 13-megapixel Sony sensor, DC136 is a professional-quality visualizer which produces bright images and vivid colors. It supports capture and live reproduction at resolutions up-to 4K. Able to visualize the finest detail and even fast action, DC136 is great for use in education and training.

User friendly Interface

Buttons on the base quickly control core functions including lamp on/off, image freeze and capture. Auto-tune and focus buttons automatically optimize the camera to produce sharp, color balanced and bright images that look great on 4K monitors, projectors, and large format displays.

Lumens Ladibug Software

DC136 supports Lumens Ladibug 4K application. The software gives users access to advanced features which include annotating images, masking and cropping images, and sharing saved files. Ladibug is easy to use and is compatible with Windows and Mac computers.

Audio and Video Recording

The built-in microphone can capture video with audio: it’s easy to record motion, complete with on-screen annotation and voice-over. This means that the device is convenient for collaborative training and distance learning. USB Plug & Play Set up couldn't be easier. The USB cable is connected to a computer (PC or Mac) without the need for an external power adapter or VGA cable. Using the Ladibug software, the computer can save videos locally or share files across networks.

Ultimate Webcam

Featuring an UltraHD camera and professional microphone, Lumens DC136 works with Zoom, Teams, Skype and Webex platforms. Users can position the camera head over a document, angle it towards the presenter or focus on students to encourage group participation. As a UVC compliant device, there are no drivers to install or configuration required. It's fully plug and play.

Imaging Flexibility

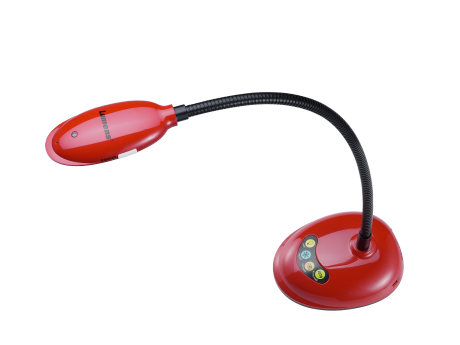

The 4K camera is mounted on a flexible, multi-angle gooseneck design. The height is adjustable for close-up or wide-angle imaging. The lens can capture large documents and objects, in excess of A3 in size (16.8” x 12.6”), giving the DC136 the versatility for use in any location and for a wide range of applications.


Specification Details


1/3” 13MP CMOS

Total Pixels

13.48 M

Output Resolution

4K(2160p), 1600x1200,
1080p,720p, XGA, 960x540,
640x480, 640x360

Frame Rate

30fps for 2160p
60fps for 1080p / 720p

Total Zoom



2x for 1080p (1920x1080)
3x for 720p (1280x720)
3x for XGA (1024x768)

Digital Zoom

16x (via Software)

Mechanical Zoom



2.4" (60 mm)

Shooting Area Max.

16.8" x 12.6" (428 mm x 321 mm)


LED Lamp


Joint-free Gooseneck


USB Bus Power


USB 3.0 (Compatible with USB2.0)



Built-in Microphone


Auto Tune

Yes, One Button for Optimization Image

Focus Mode

Auto / Manual

Image Rotation

0° / 180° / Flip / Mirror

Video / Audio Recording

Yes (via Software)

Image Mode

Photo / Text





Mask / Spotlight

Yes (via Software)

USB Image Transmission

USB 3.0

Image Capture

Single or Continuous Capturing
(via Software)



Free Lumens™ Software

Support Windows 11, 10, 7,
Mac OS X, Chrome OS


Kensington Anti-Theft Lock Device

VESA Mount

Yes, 75 mm x 75 mm

Included Accessories

USB 3.0 Cable


MTF 1500 Line

Power Consumption

2.25W (Maximum)


2.65 lbs (1.2 kg)

Dimensions: (WxHxD)

Folded : 9.3" x 4.2" x 11"
 (236 x 106 x 280 mm)
Open : 13.8" x 4.2" x 15"
 (350 x 106 x 380 mm)
