Mayku FormBox Vacuum Thermoforming Machine

Recreate shapes in minutes with industrial grade vacuum forming on your desktop.

• Create almost any shape: Use any object you can find or make to create unique molds
• Lightning fast:  Make molds in seconds to speed up your creation
• Just $1 per mold:Reduce your costs with infinitely re-usable molds
• Intricate detail: Pick up detail finer than a grain of sand
• Lightweight and small: Smaller than a microwave, the FormBox fits easily on your desktop
• Professional grade quality: Industrial grade, the FormBox is used by Nike and even NASA

Plenty of Room

The Mayku FormBox has a working area of 150mm x 150mm with a maximum draw depth of 130mm. Giving you plenty of room to turn that idea into reality.

Incredible Detail

When softened, FormBox sheets can pick up texture as fine as human hair. Making sure you get precision molds every time.

Powerful Suction

The FormBox uses a high airflow steel mesh and any home vacuum cleaner to create industrial grade suction - pulling your sheet into all those tight crevices and deep details.

How It Works

1. Create 3D print, sculpt or find your shape and place it on the FormBox bed.
2. Form The FormBox forms a sheet of material around your shape - creating a mold in seconds.
3. Multiply Fill your mold with dozens of materials from chocolate to resin, plaster and even concrete.
4. Enjoy! Take it out and bring your first collection of products to life! You can even use the FormBox to create custom packaging for your creation.

Specifications

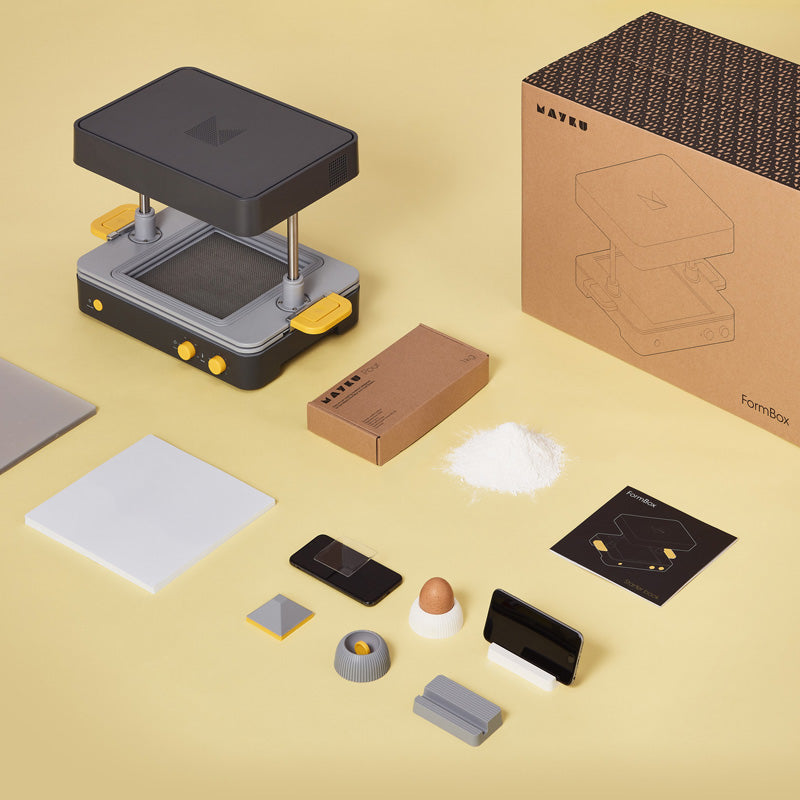

In The Box

- Mayku FormBox vacuum forming machine
- Vacuum Cleaner adapter hose
- Sample pack of Form sheets
- Sample pack of Cast sheets
- Easy to read booklet of operating principles and sample projects
- 3 forms for sample projects: Egg Cup, Phone Stand and Hologram Viewer

ThermoForming Machine

- Forming Bed: 200 x 200mm
- Draw Depth: 130mm
- Sheet Size: 235 x 235mm, 0.25-1.5mm thick
- Height: 315mm
- Length (Including Handles): 466mm
- Width: 274mm
- Heater Temperature Range: 160 - 340 °C
- Machine Weight: 10.4kgs
- Boxed Weight: 12.9kg

Power

- This is the ANZ version, fitted with a power plug suitable for Australia and New Zealand
- Input: AC220-240V, 50/60Hz, 5A, 1000W

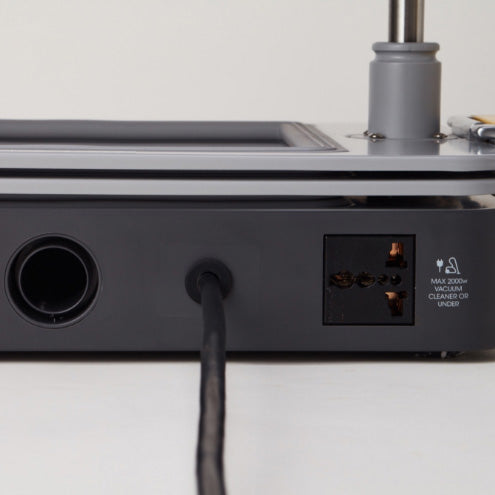

- Features an AU power socket for your vacuum cleaner which is switched on when the sheet is lowered

Vacuum Specs

The Mayku powers your vacuum on and off as required. It can only do this for vacuums up to 2000W. If you wish to use a higher wattage vacuum, simply plug it straight to the wall, do not use the FormBox switched output.

Stick and hand held vacuums vs Classic Vacuums: you can not attach a stick or hand held vacuum to your mayku. I must be a 1000W or greater vacuum with a hose, the hose is then plugged into the back of the mayku directly or using supplied adaptor.

Compatible Materials

The Mayku FormBox takes 235 x 235mm sheets. It works best with thermoplastic sheets of 0.25 - 1.5mm in thickness.
Here are the technical terms:
- PETg (Commonly found in: Food safe molds)
- HIPS (Commonly found in: Disposable cups)
- ABS (The stuff lego is made from)
- Polystyrene (Commonly found in: Product packaging)
- Polypropylene (Great for use as a mould for resin casting)
- Polycarbonate (Commonly found in: Drinks bottles)
- Polyethylene (Commonly found in: Sheet and foamed sheet)
- Acrylic PMMA (Commonly found in: Light up signs)

Product Dimensions: 466 x 274 x 315mm
