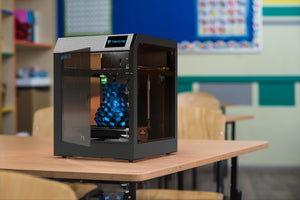

A New Look for the UP Mini3
Designed with the classroom in mind, the all-new UP Mini 3 not only has a new look, but it also has made crucial upgrades with bigger build plate, true auto calibration and filament runout protection.
The Perfect Printer for Schools...
Easy to use with a new adequate size for printing in Schools, the UP mini 3 meets the requirements in schools. With a bigger build plate and easy-to-use software, the printer has all the features needed.
- True auto calibration – Load balancing
- Dual filtration system for toxic & odour free printing
- Larger build volume
- Automatic door pause protection
Designed with the classroom in mind, the all-new UP Mini 3 not only has a new look, but it also has made crucial upgrades with bigger build plate, true auto calibration and filament runout protection.
Specifications
| UP Mini 3 | |
|---|---|
| Printing Technology | FDM (Fused Deposition Modelling) |
| Extruder | Single |
| Build Volume | 200 × 200 × 200 mm (X,Y,Z) |
| Nozzle Diameter | 0.4mm |
| Layer resolution | 0.05/0.1/0.15/0.2/0.25/0.3/0.35/ |
| Extruder Maximum temperature | 299℃ |
| Connectivity | USB cable & Wi-Fi |
| Touch Screen | 4.3″ colour touch LCD screen |
| Printed object accuracy | ±0.1mm/100mm |
| Build plate maximum temperature | 100℃ |
| Calibration and Leveling | True Touch 2.0, Automatic |
| Print Surface | Perf Glass or Flex Glass, Heated |
| Enclosure | Full |
| Dual Filtration System | HEPA and active carbon filters |
| Print Resume on Power Interrupt | Yes |
| Pause to change the type of filament | Yes |
| Out of filament detection | Yes |
| Filament Compatibility | UP Fila ABS, ABS+, PLA, TPU + third party |
| Filament Diameter | 1.75mm |
| Filament Spool Compatibility | 500g – 2000g |
| Auto-Swapping Build Plate | No, (check out the new X5 3d printer) |
| Print queue | Yes |
| Compatible with 3rd Party Materials | Yes |
| Machine dimensions | 487 x 423 x 550 mm |
| Power requirements | 110-241VAC，50-60Hz |
